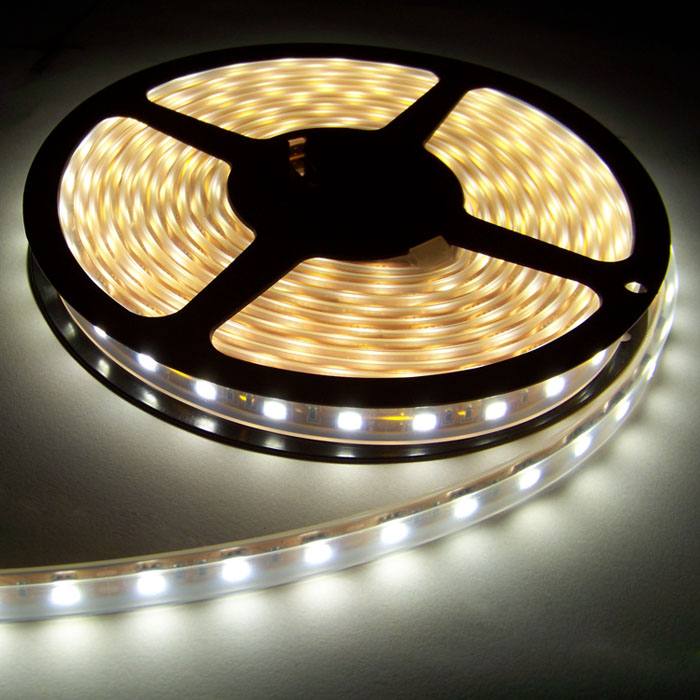

1、 LED Strip:



LED light belt is mainly high voltage and low voltage, high voltage is generally 220 V / 110 v. Low voltage is generally 5V / 12V / 24V



2、 The advantages and disadvantages of high-voltage light belt and low-voltage light belt are as follows:



(1) High voltage lamp belt



High voltage light belt can be 50 meters to 100 meters in a roll, and easy to install, can be directly connected to the 220 V power supply above. The cutting length is 1 meter.



(2) Low voltage light band



1. Low voltage lamp with safety, the voltage is generally only 12V / 24V, the human body safety voltage.



2. Flexible, conventional cutting length can be up to 2.5cm.



3. High brightness and long service life.



4. Generally, the length of a string is less than 5 meters. If it is long, there will be voltage drop, and a matching low-voltage corresponding power supply is needed.



Because of light, energy saving, soft, long life, safety and other characteristics, LED light belt is gradually emerging in the decoration industry. However, as the LED band is a new product, many customers have not used it, and they do not know how to install it. The installation effect is not very good, mainly because the light is uneven, and the light in the lamp slot is uneven.



The following is to introduce the installation method of LED light band:



3、 Installation of high voltage belt



Distinction and wiring mode of LED light strip



1. First determine the length to install, and then take the integer intercept



Because this kind of light band is a unit of 1 meter, it will not affect the circuit only if it is cut off from the shear. If it is cut off at will, one unit will not light up.



For example: if you need a length of 5.5 meters, you need to cut the lamp strip 6 meters



Distinction and wiring mode of LED light strip



Distinction and wiring mode of LED light strip



Distinction and wiring mode of LED light strip



2. LED lamp with link plug



Connect the LED light belt to the plug of the LED light belt, and remember not to connect the positive and negative poles reversely.



3. A single high-voltage light strip is generally 100 meters long, most of which can only be 50 meters long. If the connection distance is exceeded, the LED light strip is easy to generate heat, which will affect the service life of the LED light strip



4、 Installation of low voltage light belt



There are many types of LED light belt, including 5050 LED light belt, 2835 LED light belt, 3528 LED light belt, 5630 LED light belt. The installation of each kind of light belt is a little different. Next, I will introduce the installation method of mingruida LED light belt.



To determine the length of the light band to be installed, it is generally determined by the unit. Each unit of the unit has a scissors position. When cutting the light band, it is generally cut by the unit. The cutting length of the conventional 12v-60 light is 5cm. The size of 2835 / 3528 LED light with 120 light can reach 2.5cm.



Distinction and wiring mode of LED light strip



Distinction and wiring mode of LED light strip



5、 Summary



Advantages: Generally speaking, the high-voltage lamp belt is convenient, and the single length is long



Low voltage light belt is safe, flexible, long service life and high brightness. Strong operability.



Disadvantages: the service life of high voltage light belt is a little worse than that of low voltage, and it is unsafe to use 220 V high voltage.



It's troublesome to connect the low-voltage light belt to the power supply. The length of a single light belt should not be too long.
